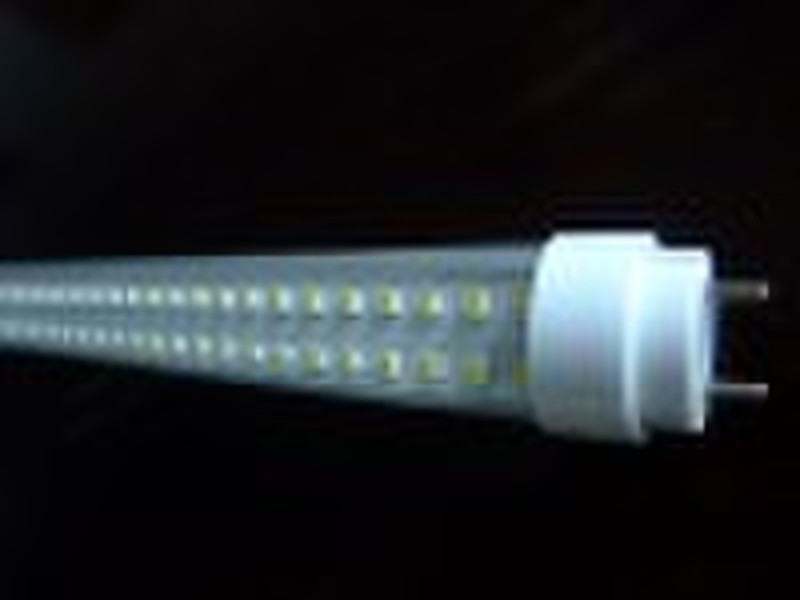

led tube

OverviewLED tubes provided by PIPU Lighting Co., Ltd drive high Brightness to get white light through Isolated constant and current constant voltage driver .It has high brightness, high efficiency, durability and other characteristics. It is the ideal product to replace fluorescent lamps without changing bracket.SpecificationsTypeT8-L15W BasicDiameter26mmlength894mmLamp holderG13light through maskTypical :light expansion type,Transparent or stripes is OptionalShellPC cover and aluminum Alloy Cooling shieldLight source3014 (0.1W) SMD LEDsLED Quantity144PCSWeight (typical)300gElectricalInput Voltage100-240Vac, 50-60HzInput power15WPower Factor>0.9Operating temperature-20 45°CHumidity20-85% RHStorage temperature-30 60°CStorage humidity10-95% RHAdjustable lightnoOpticalFlux(Remark 1)1100lmFlux(Remark2)10500lmIllumination @2.5M(Remark 3)92luxLamp light effect> 75lm/WRelative Color temperature2700-3500K, 4000-4500K, 6000K-6500K,Color-rendering indexRa > 70Viewing angle120,170 degreeremark1,This Flux data is based on the test of LED tube with transparent light through mask,Viewing angle:120°2,This Flux data is based on the test of LED tube with Light expansion type transparent light through mask,Viewing angle 170°3,This Illumination data is based on the test of LED tub,2.5 Forward illuminance values.character:lenvironmental protection, no heavy metals:mercury, no ultraviolet radiation,Meet CE RoHSlenergy savingllifespan is more than 50000 hoursluse isolated high safety coefficient and high power factor LED driverl three year guaranteeApplicationl commercial establishmentsl schools and officesl hospitals and factoriesPacking sizeTube dimensionsPackaging typePacking size(CM)QTY(PCS)gross(KG)90CMCarton Size127×21.5×22.53013KG90CMbox size92×3.0×3.010.39Installation InstructionIn order to avoid unnecessary risks and dangers, before installation please read the following installation instructionswarning1.Installation must be done by professionals. 2.before checking circuit, installing or uninstalling, you must cut off the appropriate power 3.Indoor use only. Before the installation, please know this series of LED fluorescent tube electrical connection diagram,as followsFor fluorescent lamp which starts through the inductive ballast ,the installation steps are as follows:step1:Cut off the power before installation to ensure that the installation process is not the risk of electric shock.step 2:Remove its starter, and then open the stand.step 3:Short-circuit inductive ballast,ensure that LED fluorescent tube connections is same as electrical connections shown in the above picturestep 4:Replace the bracket, install LED fluorescent tube to the bracketstep 5:Try the power,the LED fluorescent tube lights normally indicating a successful installation.For fluorescent lamp which starts through the Electronic ballast ,the installation steps are as followsstep 1:Cut off the power before installation to ensure that the installation process is not the risk of electric shockstep 2:Open bracket, remove electronic ballast at both ends of the bracketstep 3:Complete the bracket connections according to LED tube Electrical connection diagram.step 4:Replace the bracket, install LED fluorescent tube to the bracket.step 5:Try the power,the LED fluorescent tube lights normally indicating a successful installation.
